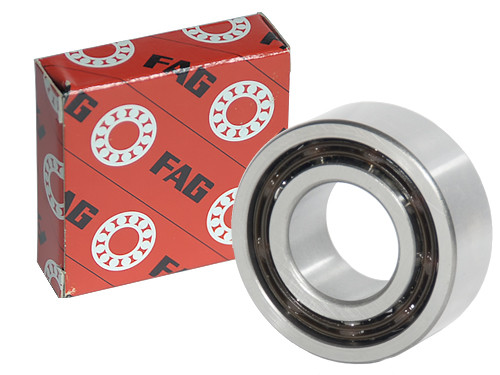

FAG Hoekcontactlager Tweerijig 3305 BD TVH (25x62x25.4mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3305 BD TVH (25x62x25.4mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
This product is currently out of stock.
- Easy return
Technical data
Artikelposition
BO557921
FAG, Hoekcontactlager, Tweerijig, 3305, BD, TVH.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3305
Seal
No seal
Buitenring
Nein
Kooi
Nein
Asdiameter - d (mm)
25
Buitendiameter - D (mm)
62
Dikte - B (mm)
25.4
r min (mm)
Nein
Statisch Draaggetal (N)
21000
Dynamisch Draaggetal (N)
31500
Grenstoerental (tr/min)
12400
Referentietoerental (tr/min)
9400
Temperatuurbereik
-30º tot +120º C
Vetsoort
Nein
Tolerance Class
C0 (Standard)
Gewicht
0.3520
EAN
4012802474824
