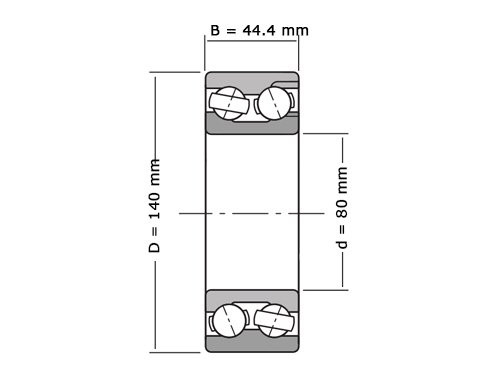

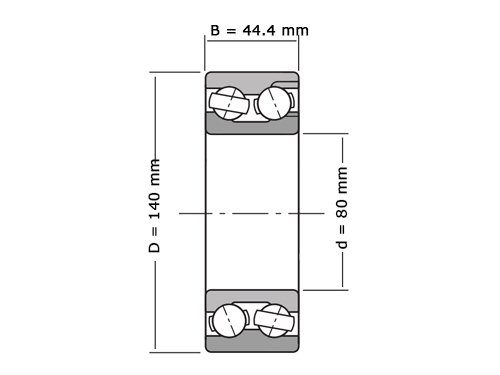

FAG Hoekcontactlager Tweerijig 3216 B 2Z TVH (80x140x44.4mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3216 B 2Z TVH (80x140x44.4mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO195590
FAG, Hoekcontactlager, Tweerijig, 3216, 2Z, TVH, 80x140x44.4mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
Nein
Seal
ZZ (2 sides metal shield)
Buitenring
Nein
Kooi
Nein
Asdiameter - d (mm)
80
Buitendiameter - D (mm)
140
Dikte - B (mm)
44.4
r min (mm)
2
Statisch Draaggetal (N)
102000
Dynamisch Draaggetal (N)
99000
Grenstoerental (tr/min)
3650
Referentietoerental (tr/min)
5100
Temperatuurbereik
-20º tot +120º C
Vetsoort
Nein
Tolerance Class
C0 (Standard)
Gewicht
2.3500
EAN
4012801271110
