FAG Hoekcontactlager Tweerijig 3212 BD XL 2Z (60x110x36.5mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3212 BD XL 2Z (60x110x36.5mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO297933

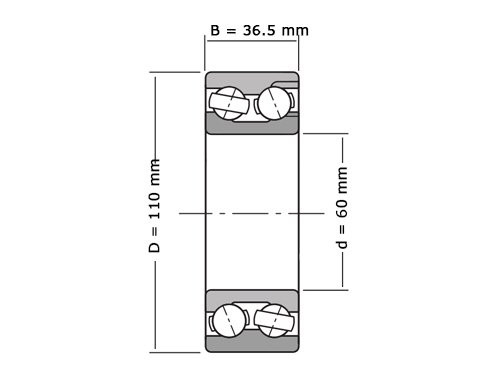

FAG, Hoekcontactlager, Tweerijig, 3212, BD, XL, 2Z, 60x110x36.5mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
Nein
Seal
ZZ (2 sides metal shield)
Buitenring
Nein
Kooi
Nein
Asdiameter - d (mm)
60
Buitendiameter - D (mm)
110
Dikte - B (mm)
36.5
r min (mm)
1.5
Statisch Draaggetal (N)
64000
Dynamisch Draaggetal (N)
75000
Grenstoerental (tr/min)
4750
Referentietoerental (tr/min)
6700
Temperatuurbereik
-20º tot +120º C
Vetsoort
Nein
Tolerance Class
C0 (Standard)
Gewicht
1.3010
EAN
4047643335911
