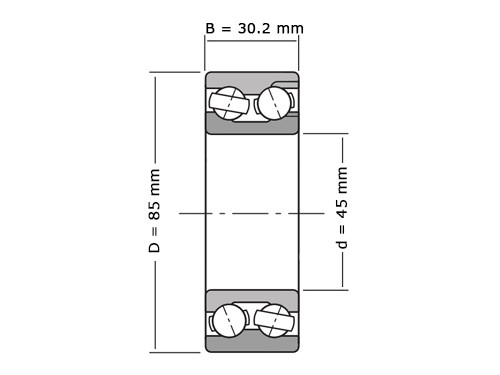

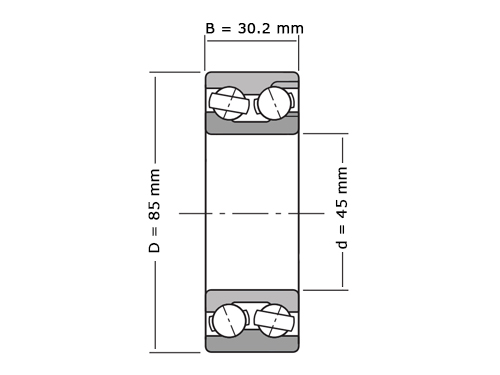

FAG Hoekcontactlager Tweerijig 3209 BD XL ZZ (45x85x30.2mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3209 BD XL ZZ (45x85x30.2mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO243899
FAG, Hoekcontactlager, Tweerijig, 3209, BD, XL, ZZ.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3209
Seal
ZZ (2 sides metal shield)
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend
Asdiameter - d (mm)
45
Buitendiameter - D (mm)
85
Dikte - B (mm)
30.2
r min (mm)
1.1
Statisch Draaggetal (N)
39000
Dynamisch Draaggetal (N)
50000
Grenstoerental (tr/min)
6300
Referentietoerental (tr/min)
8400
Temperatuurbereik
-20º tot +120º C
Vetsoort
Nicht zutreffend
Tolerance Class
C0 (Standard)
Gewicht
0.6400
EAN
4047643335799
