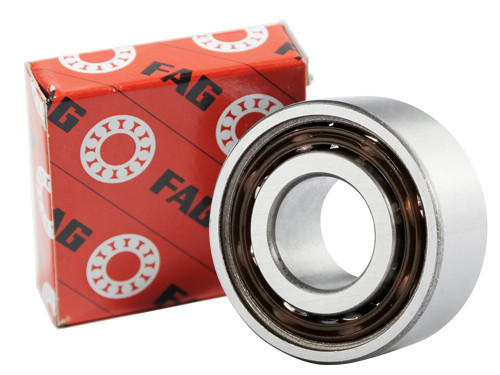

FAG Hoekcontactlager Tweerijig 3209 BD TVH (45x85x30.2mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3209 BD TVH (45x85x30.2mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO566843
FAG, Hoekcontactlager, Tweerijig, 3209, BD, TVH.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3209
Seal
No seal
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend

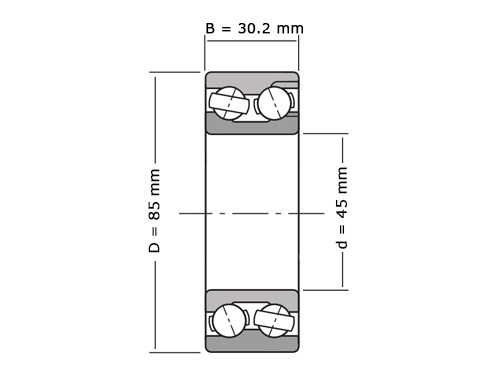

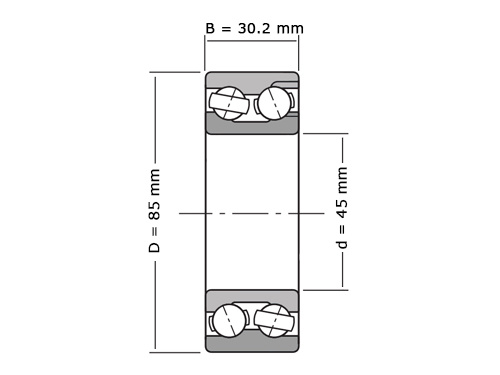

Asdiameter - d (mm)
45
Buitendiameter - D (mm)
85
Dikte - B (mm)
30.2
r min (mm)
1.1
Statisch Draaggetal (N)
39000
Dynamisch Draaggetal (N)
50000
Grenstoerental (tr/min)
8300
Referentietoerental (tr/min)
8400
Temperatuurbereik
-30º tot +120º C
Vetsoort
Nicht zutreffend
Tolerance Class
C0 (Standard)
Gewicht
0.6220
EAN
4012802477979
