FAG Hoekcontactlager Tweerijig 3209 BD 2HRS TVH C3 (45x85x30.2mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3209 BD 2HRS TVH C3 (45x85x30.2mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO387862
FAG, Hoekcontactlager, Tweerijig, 3209, BD, 2HRS, TVH, C3.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3209
Seal
2RS (2 sides rubber seal)
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend

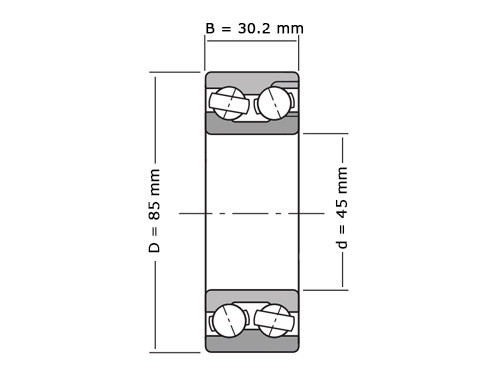

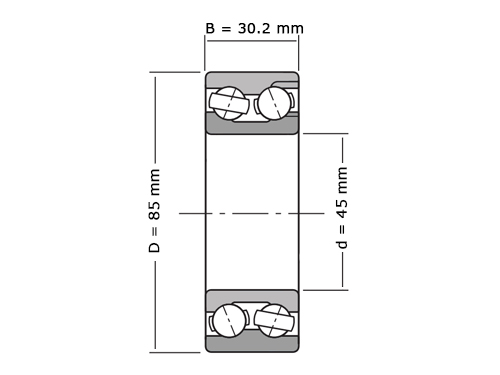

Asdiameter - d (mm)
45
Buitendiameter - D (mm)
85
Dikte - B (mm)
30.2
r min (mm)
1.1
Statisch Draaggetal (N)
39000
Dynamisch Draaggetal (N)
50000
Grenstoerental (tr/min)
6300
Referentietoerental (tr/min)
Nicht zutreffend
Temperatuurbereik
-20º tot +100º C
Vetsoort
Nicht zutreffend
Tolerance Class
C3
Gewicht
0.6210
EAN
4012802477924
