FAG Hoekcontactlager Tweerijig 3208 BD XL ZZ (40x80x30.2mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3208 BD XL ZZ (40x80x30.2mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO204032
FAG, Hoekcontactlager, Tweerijig, 3208, BD, XL, ZZ, 40x80x30.2mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3208
Seal
ZZ (2 sides metal shield)
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend

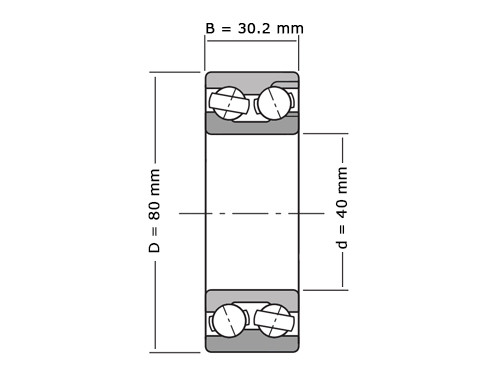

Asdiameter - d (mm)
40
Buitendiameter - D (mm)
80
Dikte - B (mm)
30.2
r min (mm)
1.1
Statisch Draaggetal (N)
38000
Dynamisch Draaggetal (N)
51000
Grenstoerental (tr/min)
6700
Referentietoerental (tr/min)
9100
Temperatuurbereik
-20º tot +120º C
Vetsoort
Nicht zutreffend
Tolerance Class
C0 (Standard)
Gewicht
0.6050
EAN
4047643335751
