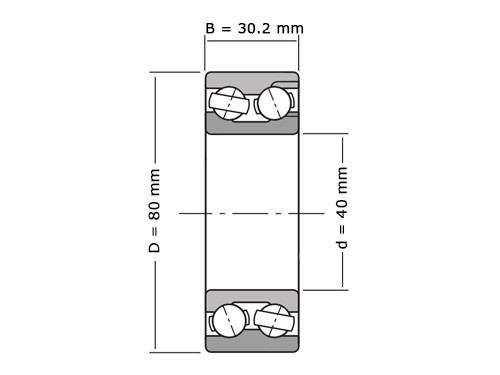

FAG Hoekcontactlager Tweerijig 3208 BD XL 2HRS (40x80x30.2mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3208 BD XL 2HRS (40x80x30.2mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO516620
FAG, Hoekcontactlager, Tweerijig, 3208, BD, XL, 2HRS, 40x80x30.2mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3208
Seal
2RS (2 sides rubber seal)
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend
Asdiameter - d (mm)
40
Buitendiameter - D (mm)
80
Dikte - B (mm)
30.2
r min (mm)
1.1
Statisch Draaggetal (N)
38000
Dynamisch Draaggetal (N)
51000
Grenstoerental (tr/min)
6700
Referentietoerental (tr/min)
Nicht zutreffend
Temperatuurbereik
-20º tot +100º C
Vetsoort
Nicht zutreffend
Tolerance Class
C0 (Standard)
Gewicht
0.6000
EAN
4054364466206
