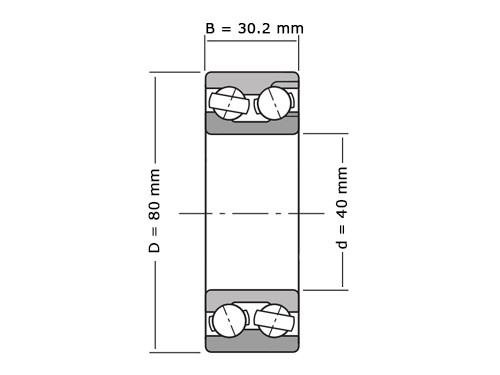

FAG Hoekcontactlager Tweerijig 3208 BD TVH (40x80x30.2mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3208 BD TVH (40x80x30.2mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO309199
FAG, Hoekcontactlager, Tweerijig, 3208, BD, TVH, 40x80x30.2mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3208
Seal
No seal
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend
Asdiameter - d (mm)
40
Buitendiameter - D (mm)
80
Dikte - B (mm)
30.2
r min (mm)
1.1
Statisch Draaggetal (N)
38000
Dynamisch Draaggetal (N)
51000
Grenstoerental (tr/min)
8900
Referentietoerental (tr/min)
9100
Temperatuurbereik
-30º tot +120º C
Vetsoort
Nicht zutreffend
Tolerance Class
C0 (Standard)
Gewicht
0.5910
EAN
4012802477733
