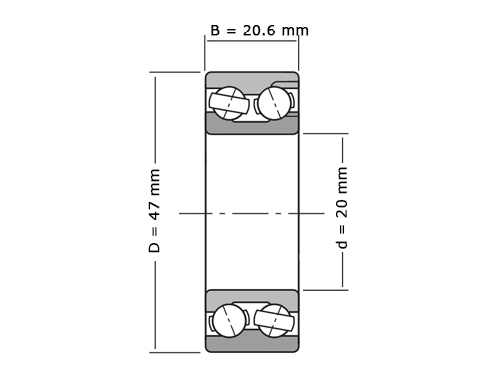

FAG Hoekcontactlager Tweerijig 3204 BD XL ZZ (20x47x20.6mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3204 BD XL ZZ (20x47x20.6mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO445827
FAG, Hoekcontactlager, Tweerijig, 3204, BD, XL, ZZ, 20x47x20.6mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3204
Seal
ZZ (2 sides metal shield)
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend
Asdiameter - d (mm)
20
Buitendiameter - D (mm)
47
Dikte - B (mm)
20.6
r min (mm)
1
Statisch Draaggetal (N)
12900
Dynamisch Draaggetal (N)
20600
Grenstoerental (tr/min)
12100
Referentietoerental (tr/min)
14700
Temperatuurbereik
-20° tot +120° C
Vetsoort
Nicht zutreffend
Tolerance Class
C0 (Standard)
Gewicht
0.1570
EAN
4047643335591
