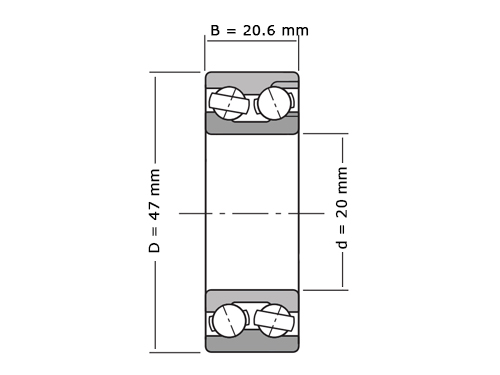

FAG Hoekcontactlager Tweerijig 3204 BD XL 2HRS (20x47x20.6mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3204 BD XL 2HRS (20x47x20.6mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO193406
FAG, Hoekcontactlager, Tweerijig, 3204, BD, XL, 2HRS, 20x47x20.6mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3204
Seal
2RS (2 sides rubber seal)
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend
Asdiameter - d (mm)
20
Buitendiameter - D (mm)
47
Dikte - B (mm)
20.6
r min (mm)
1
Statisch Draaggetal (N)
12900
Dynamisch Draaggetal (N)
20600
Grenstoerental (tr/min)
12100
Referentietoerental (tr/min)
Nicht zutreffend
Temperatuurbereik
-20º tot +100º C
Vetsoort
Nicht zutreffend
Tolerance Class
C0 (Standard)
Gewicht
0.1570
EAN
4054366899637
