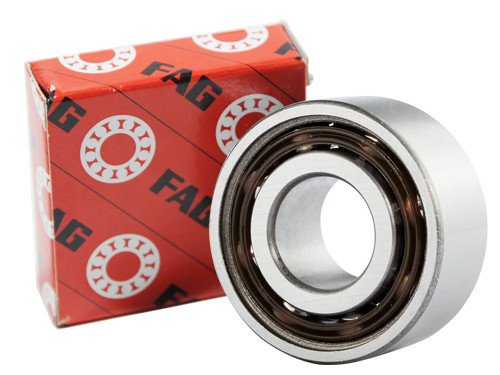

FAG Hoekcontactlager Tweerijig 3204 BD TVH C3 (20x47x20.6mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3204 BD TVH C3 (20x47x20.6mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO115088
FAG, Hoekcontactlager, Tweerijig, 3204, BD, TVH, C3, 20x47x20.6mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3204
Seal
Nein
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend

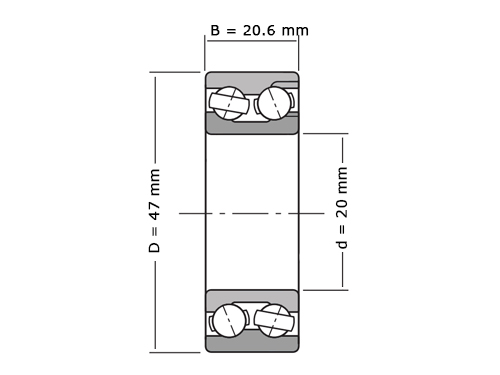

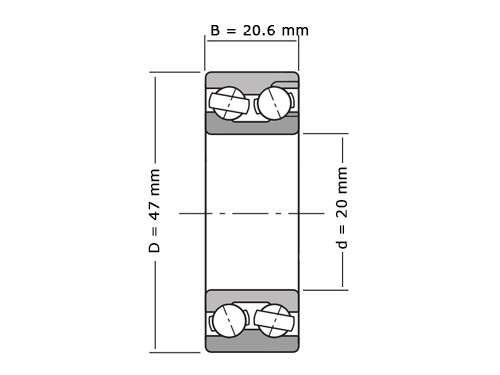

Asdiameter - d (mm)
20
Buitendiameter - D (mm)
47
Dikte - B (mm)
20.6
r min (mm)
1
Statisch Draaggetal (N)
12900
Dynamisch Draaggetal (N)
20600
Grenstoerental (tr/min)
16100
Referentietoerental (tr/min)
14700
Temperatuurbereik
-30º tot +120º C
Vetsoort
Nicht zutreffend
Tolerance Class
C3
Gewicht
0.1540
EAN
4012802474718
