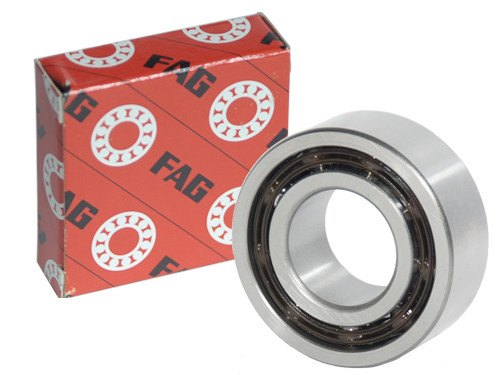

FAG Hoekcontactlager Tweerijig 3203 BD XL TVH L285 (17x40x17.5mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3203 BD XL TVH L285 (17x40x17.5mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO589046
FAG, Hoekcontactlager, Tweerijig, 3203, BD, XL, TVH, L285, 17x40x17.50mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
Nein
Seal
No seal
Buitenring
Nein
Kooi
Nein

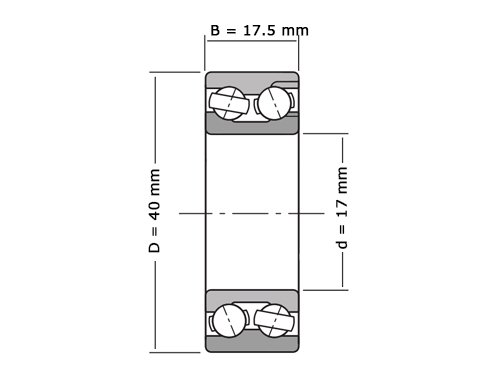

Asdiameter - d (mm)
17
Buitendiameter - D (mm)
40
Dikte - B (mm)
17.5
r min (mm)
0.6
Statisch Draaggetal (N)
9500
Dynamisch Draaggetal (N)
15500
Grenstoerental (tr/min)
14600
Referentietoerental (tr/min)
16600
Temperatuurbereik
-20º tot +120º C
Vetsoort
Nein
Tolerance Class
C0 (Standard)
Gewicht
0.0960
EAN
4012802645002
