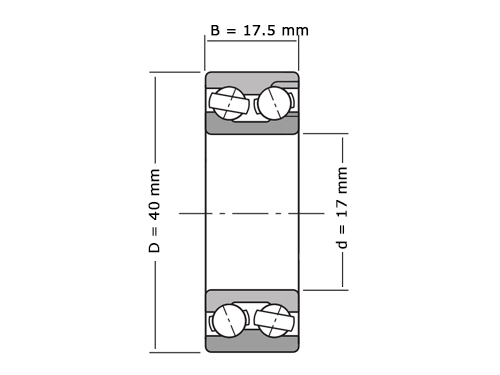

FAG Hoekcontactlager Tweerijig 3203 BD XL 2HRS C3 (17x40x17.5mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3203 BD XL 2HRS C3 (17x40x17.5mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO686557
FAG, Hoekcontactlager, Tweerijig, 3203, BD, XL, 2HRS, C3, 17x40x17.5mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3203
Seal
2RS (2 sides rubber seal)
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend
Asdiameter - d (mm)
17
Buitendiameter - D (mm)
40
Dikte - B (mm)
17.5
r min (mm)
0.6
Statisch Draaggetal (N)
9500
Dynamisch Draaggetal (N)
15500
Grenstoerental (tr/min)
14600
Referentietoerental (tr/min)
Nicht zutreffend
Temperatuurbereik
-20º tot +100º C
Vetsoort
Nicht zutreffend
Tolerance Class
C3
Gewicht
0.0980
EAN
4054366900876
