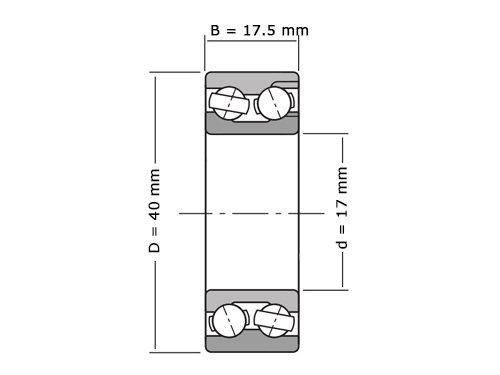

FAG Hoekcontactlager Tweerijig 3203 BD XL (17x40x17.5mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3203 BD XL (17x40x17.5mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO218400
FAG, Hoekcontactlager, Tweerijig, 3203, BD, XL, 17x40x17.5mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3203
Seal
Nein
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend
Asdiameter - d (mm)
17
Buitendiameter - D (mm)
40
Dikte - B (mm)
17.5
r min (mm)
0.6
Statisch Draaggetal (N)
9500
Dynamisch Draaggetal (N)
15500
Grenstoerental (tr/min)
19400
Referentietoerental (tr/min)
16600
Temperatuurbereik
-30º tot +120º C
Vetsoort
Nicht zutreffend
Tolerance Class
Nein
Gewicht
0.0950
EAN
4012802672411
