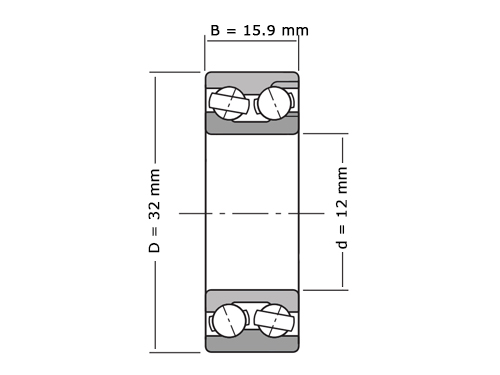

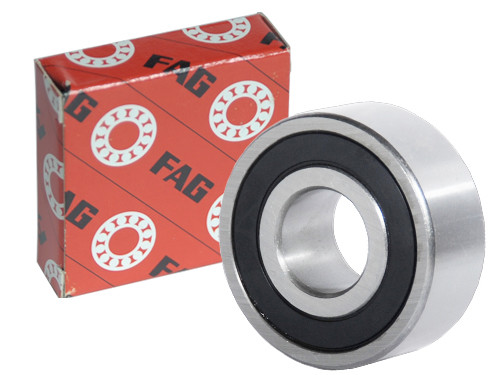

FAG Hoekcontactlager Tweerijig 3201 BB 2RSR TVH (12x32x15.9mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3201 BB 2RSR TVH (12x32x15.9mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO383404
FAG, Hoekcontactlager, Tweerijig, 3201, BB, 2RSR, TVH, 12x32x15.9mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3201
Seal
2RS (2 sides rubber seal)
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend
Asdiameter - d (mm)
12
Buitendiameter - D (mm)
32
Dikte - B (mm)
15.9
r min (mm)
0.6
Statisch Draaggetal (N)
5800
Dynamisch Draaggetal (N)
10500
Grenstoerental (tr/min)
15000
Referentietoerental (tr/min)
Nicht zutreffend
Temperatuurbereik
-20º tot +100º C
Vetsoort
Nicht zutreffend
Tolerance Class
Nein
Gewicht
0.0570
EAN
4047643206877
