FAG Hoekcontactlager Eenrijig 7416 B MP UA (80x200x48mm)
Product information
If you have any questions about the FAG Hoekcontactlager Eenrijig 7416 B MP UA (80x200x48mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO750348
FAG, Hoekcontactlager, Eenrijig, 7416, MP, UA, 80x200x48mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
7416
Seal
No seal
Material
Nicht zutreffend
Kooi
Nicht zutreffend
Buitenring
Nicht zutreffend
Tolerance Class
C0 (Standard)
Temperatuurbereik
-30º tot +150º C

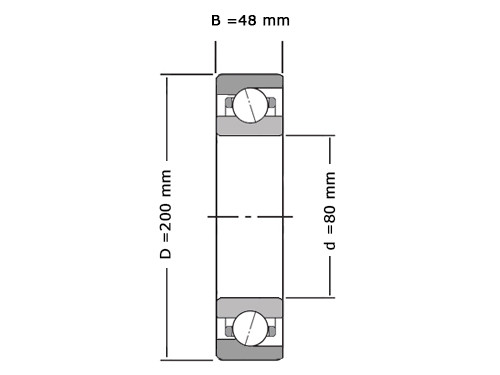

Asdiameter - d (mm)
80
Buitendiameter - D (mm)
200
Dikte - B (mm)
48
r min (mm)
3
r1 min (mm)
Nein
Statisch Draaggetal (N)
169000
Dynamisch Draaggetal (N)
200000
Grenstoerental (tr/min)
5800
Referentietoerental (tr/min)
3600
Gewicht
7.7710
EAN
4012801284417
