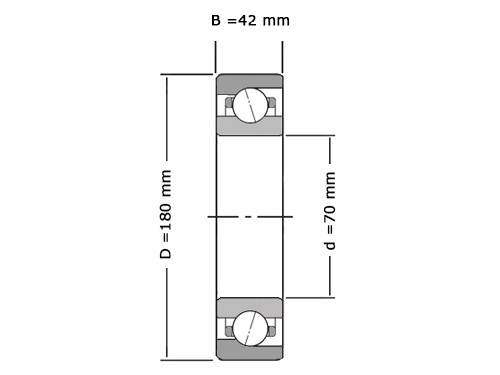

FAG Hoekcontactlager Eenrijig 7414 B MP (70x180x42mm)
Product information
If you have any questions about the FAG Hoekcontactlager Eenrijig 7414 B MP (70x180x42mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO405785
FAG, Hoekcontactlager, Eenrijig, 7414, MP, 70x180x42mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
7414
Seal
No seal
Material
Nicht zutreffend
Kooi
Nicht zutreffend
Buitenring
Nicht zutreffend
Tolerance Class
C0 (Standard)
Temperatuurbereik
-30º tot +150º C
Asdiameter - d (mm)
70
Buitendiameter - D (mm)
180
Dikte - B (mm)
42
r min (mm)
3
r1 min (mm)
Nein
Statisch Draaggetal (N)
138000
Dynamisch Draaggetal (N)
167000
Grenstoerental (tr/min)
6400
Referentietoerental (tr/min)
3450
Gewicht
5.8000
EAN
4012801284370
