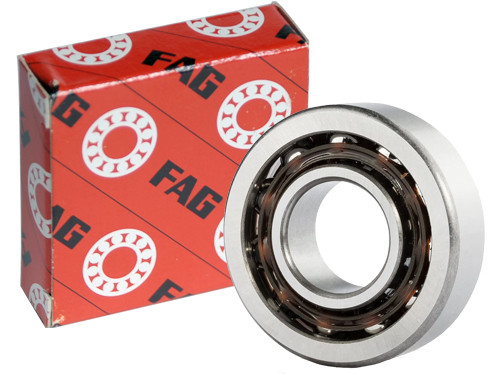

FAG Hoekcontactlager Eenrijig 7316 B JP UA (80x170x39mm)
Product information
If you have any questions about the FAG Hoekcontactlager Eenrijig 7316 B JP UA (80x170x39mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO290886
FAG, Hoekcontactlager, Eenrijig, 7316, JP, UA, 80x170x39mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
7316
Seal
No seal
Material
Nicht zutreffend
Kooi
Nicht zutreffend
Buitenring
Nicht zutreffend
Tolerance Class
C0 (Standard)
Temperatuurbereik
-30º tot +150º C

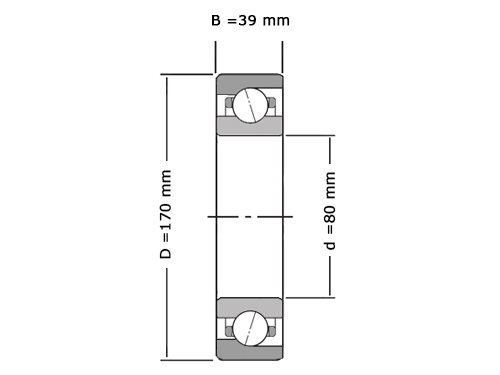

Asdiameter - d (mm)
80
Buitendiameter - D (mm)
170
Dikte - B (mm)
39
r min (mm)
2.1
r1 min (mm)
Nein
Statisch Draaggetal (N)
124000
Dynamisch Draaggetal (N)
155000
Grenstoerental (tr/min)
5200
Referentietoerental (tr/min)
4250
Gewicht
3.9000
EAN
4026677667069
