FAG Hoekcontactlager Eenrijig 7315 B MP UO (75x160x37mm)
Product information
If you have any questions about the FAG Hoekcontactlager Eenrijig 7315 B MP UO (75x160x37mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO151407
FAG, Hoekcontactlager, Eenrijig, 7315, MP, UO, 75x160x37mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
7315
Seal
No seal
Material
Nicht zutreffend
Kooi
Nicht zutreffend
Buitenring
Nicht zutreffend
Tolerance Class
C0 (Standard)
Temperatuurbereik
-30º tot +150º C

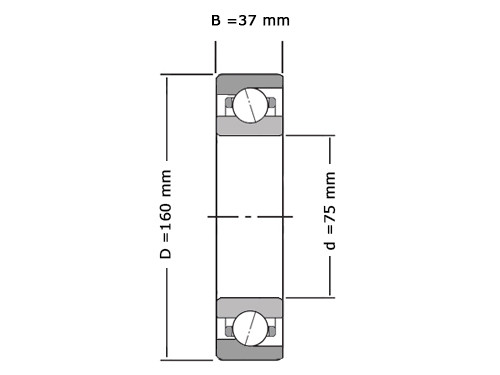

Asdiameter - d (mm)
75
Buitendiameter - D (mm)
160
Dikte - B (mm)
37
r min (mm)
2.1
r1 min (mm)
Nein
Statisch Draaggetal (N)
107000
Dynamisch Draaggetal (N)
140000
Grenstoerental (tr/min)
7300
Referentietoerental (tr/min)
4500
Gewicht
3.5100
EAN
4012801283731
